AC/DC geared motor peristaltic pump OEM01

It can provide a maximum flow of 2280ml/min (≤600rpm), easy to install, and suitable for small flow liquid transportation in various environments with low precision. Driven by AC geared motor or DC geared motor, with large torque, YZ1515, YZ2515, DG series pump heads can be installed.

Flow range:Maximum flow: 2280ml/min

Maximum number of channels:1 channel

Introduction

Parameter

Guide

video

It can provide a maximum flow of 2280ml/min (≤600rpm), easy to install, and suitable for small flow liquid transportation in various environments with low precision. Driven by AC geared motor or DC geared motor, with large torque, YZ1515, YZ2515, DG series pump heads can be installed.

With fixed speed, the motor can be selected according to user requirements.


OEM01 technical indicators
range of rotation: ≤600rpm, fixed speed, optional.
motor: AC geared motor or DC geared motor
Applicable power supply: AC 220V, DC 12V/24V can be equipped with a speed regulator.
Applicable environment: Temperature 0-40℃, humidity <80%


model Pump head Applicable hose Reference flow range (ml/min)

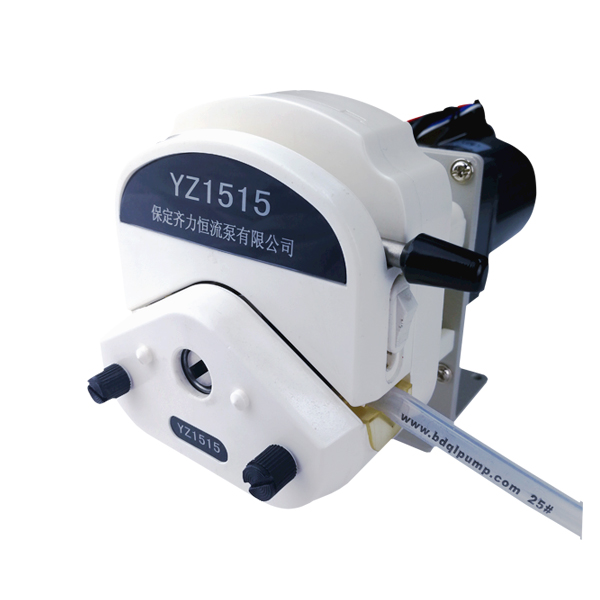

OEM01 YZ1515 13#14#19#16#25#17#18# ≤2280
YZ2515 15#24# ≤1740

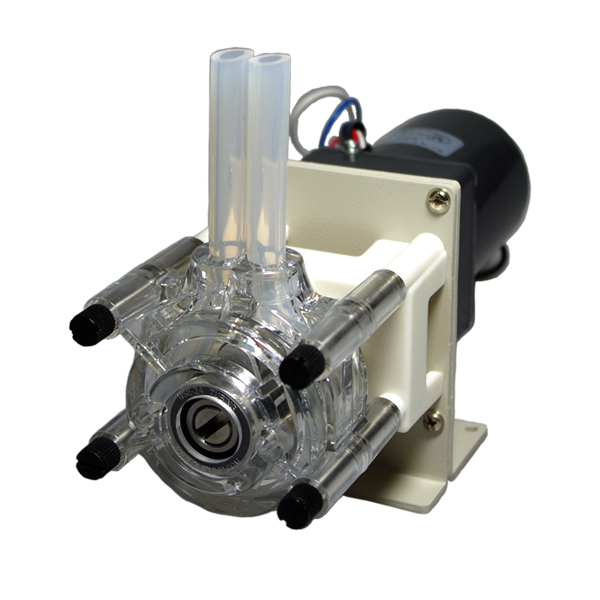

DG series Wall thickness≤1mm
Inner diameter≤3.17mm
≤48

相关产品

*If you encounter any operation or quality problems of Qili constant flow pump, please contact us in time.

*Baoding Qili constant flow pump Co., Ltd. guarantees 7 * 24 hours online.

*Qili constant flow pump brand products have a one-year warranty and lifelong maintenance.

*The product picture, model, data, function, performance, motor model, specification and other parameters of this website are for reference only. Qili constant flow pump can improve the above content. For more information, please refer to the product manual. Unless otherwise specified, the data contained in this website are the internal test results of Qili constant flow pump.
