Stepping motor subdivided drive, DC power supply, high precision and stable operation.
The bottom plate installation method is divided into two control methods: internal control and external control.
The internal control adopts BCD dial switch, a total of 15 gears, and the speed is not continuously adjusted.
The external control continuously adjusts the speed through 0-10KHz (or 0-10V, 0-5V, 4-20mA).
RS485 communication control possible (the company can provide Modbus protocol)
The switch value controls the start, stop and direction.
Beautiful appearance, small size, easy and intuitive operation, power supply requirements DC11.4-25.2V range can be used, suitable for OEM supporting use.

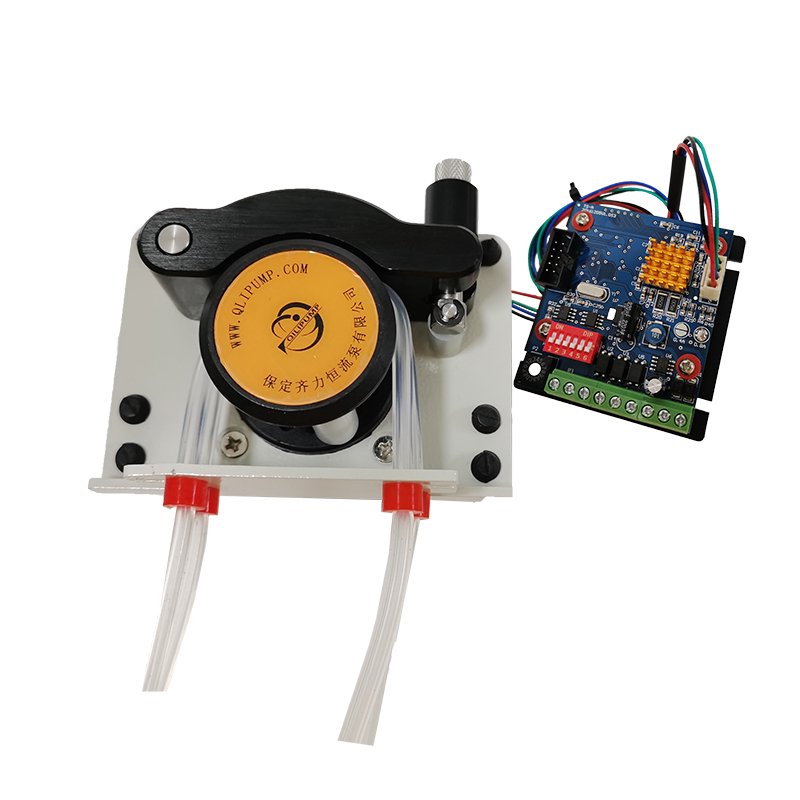

| TS100-A/JY10 peristaltic pump technical indicators: | |||
| Internal control speed range | The maximum speed is 100rpm, adjustable in stages | Speed resolution | 1rpm, full linear correspondence |
| External control speed range | 1～100rpm | Speed error | ≤±1rpm |
| Internal control speed control | BCD dial switch adjustment | External speed control | 0-10KHz pulse control (or 0-5V, 0-10V, 4-20mA) |
| Start-stop control | Switch control | Direction control | Switch quantity control, reversible forward and reverse directions |
| Applicable power supply | 11.4-25.2V DC; or 100-240V AC (optional power adapter) 50Hz/60Hz | Power consumption | ≤12W |
| Working environment | Ambient temperature 0～40℃, relative humidity <80% | Dimensions | 115×60×92(mm) |
| (Length×Width×Height) | |||
| Drive weight | 550g | Use hose | 0.5*0.8 1*1 2*1 3*1 |
| Drive model | Number of pump head rollers | Number of channels | Applicable hose | Speed range | Maximum reference flow |
| （ml/min） | |||||
| JY10-14 | 4 | 1 | 1×1 | 0.1-100 | 0.004-4 |
| 2×1 | 0.025-25 | ||||
| 2.4×0.8 | 0.029-29 | ||||
| 3×1 | 0.044-44 | ||||
| JY10-18 | 8 | 1 | 1×1 | 0.1-100 | 0.0036-3.6 |
| 2×1 | 0.018-18 | ||||
| 2.4×0.8 | 0.02-20 | ||||
| 3×1 | 0.026-26 | ||||
| JY10-24 | 4 | 2 | 1×1 | 0.1-100 | 0.004-4 |
| 2×1 | 0.025-25 | ||||
| 2.4×0.8 | 0.029-29 | ||||
| 3×1 | 0.044-44 | ||||
| JY10-28 | 8 | 2 | 1×1 | 0.1-100 | 0.0036-3.6 |
| 2×1 | 0.018-18 | ||||
| 2.4×0.8 | 0.02-20 | ||||
| 3×1 | 0.026-26 |
