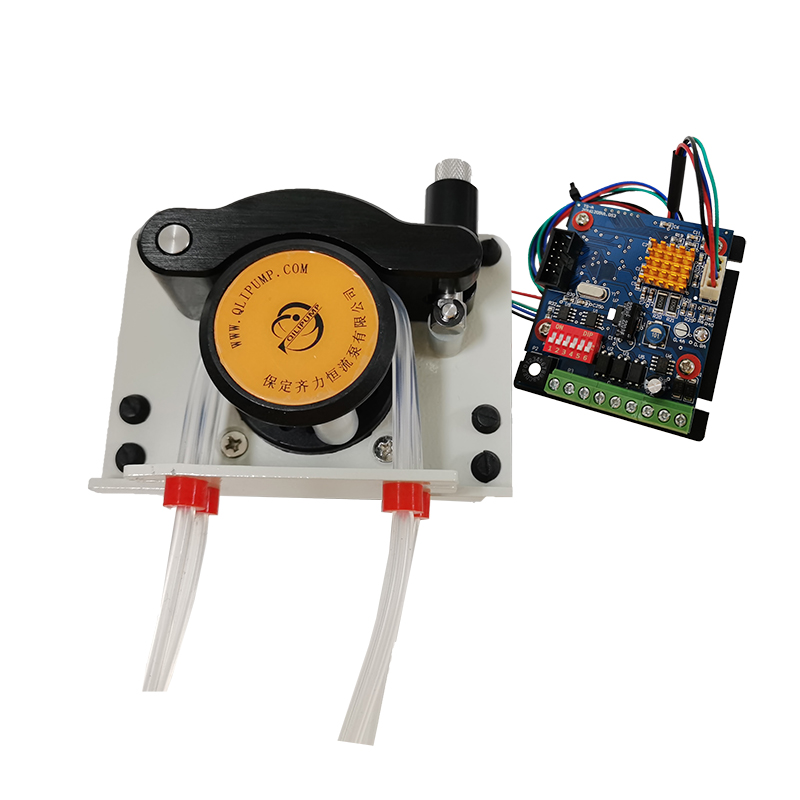

Fixed speed peristaltic pump OEM03

It is widely used for equipment feeding, replenishment and transmission. For example, fermentation feed, dry feed and other industrial fields.

Flow range:Maximum reference flow: ≤167ml/min

Maximum number of channels:1 channel

Introduction

Parameter

Guide

video

It can provide a maximum flow of 167ml/min, fixed speed, easy installation, suitable for supporting use.

Driven by AC synchronous geared motor, fixed speed, optional speed.

Hose fixing form is optional: elastic clamping type and pipe joint type

The pump head with spring can greatly increase the life of the hose.

It is widely used for equipment feeding, replenishment and transmission. For example, fermentation feed, dry feed and other industrial fields.

OEM03 technical indicators
range of rotation: 5rpm, 20rpm, 60rpm, 110rpm fixed speed optional
motor: AC synchronous geared motor
Applicable power supply: DC 220V
Applicable environment: Temperature 0-40℃, humidity <80%
Power consumption: 15W
Dimensions: 105.5×110×80(mm)
weight: 0.7kg

model Applicable pump head Applicable hose Flow range (ml/min)
OEM03 TH15 16# 25# ≤167
