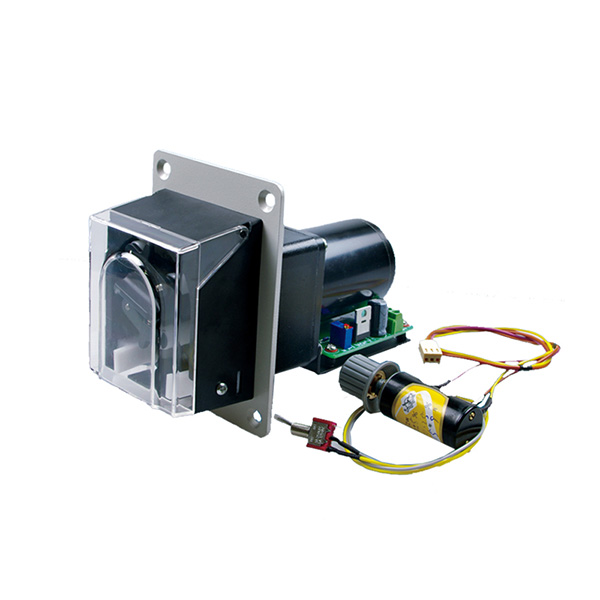

Fixed speed peristaltic pump OEM06

Beautiful appearance, small size, convenient installation, simple and intuitive operation, suitable for OEM supporting use.

Flow range:Maximum flow: 240ml/min

Maximum number of channels:1 channel

Introduction

Parameter

Guide

video

Main features of OEM06 peristaltic pump


▲Driven by DC/AC geared motor and can be equipped with speed control board.

▲It can provide a maximum flow rate of 240mL/min and a fixed speed.

▲Hose fixing form is optional: elastic clamping type and pipe joint type.

▲The pump head with spring can greatly increase the life of the hose.

▲Beautiful appearance, small size, convenient installation, simple and intuitive operation, suitable for OEM supporting use.

range of rotation 5, 8, 20, 60, 110rpm, fixed speed optional Speed resolution 1rpm
motor AC/DC geared motors External speed control 0-10kHz pulse control (or 0-5V, 0-10V, 4-20mA)
Applicable power supply   AC220V/DC24V Power consumption ≤15W
working environment Ambient temperature 0~40℃, relative humidity <80% Dimensions (L×W×H) 162.5 ×80×110(mm)
Drive weight 1.18kg Use hose 16#、25#

model Applicable pump head Applicable hose Flow range (ml/min)
OEM06 TH15 16# 25# ≤240
相关产品

*If you encounter any operation or quality problems of Qili constant flow pump, please contact us in time.

*Baoding Qili constant flow pump Co., Ltd. guarantees 7 * 24 hours online.

*Qili constant flow pump brand products have a one-year warranty and lifelong maintenance.

*The product picture, model, data, function, performance, motor model, specification and other parameters of this website are for reference only. Qili constant flow pump can improve the above content. For more information, please refer to the product manual. Unless otherwise specified, the data contained in this website are the internal test results of Qili constant flow pump.
