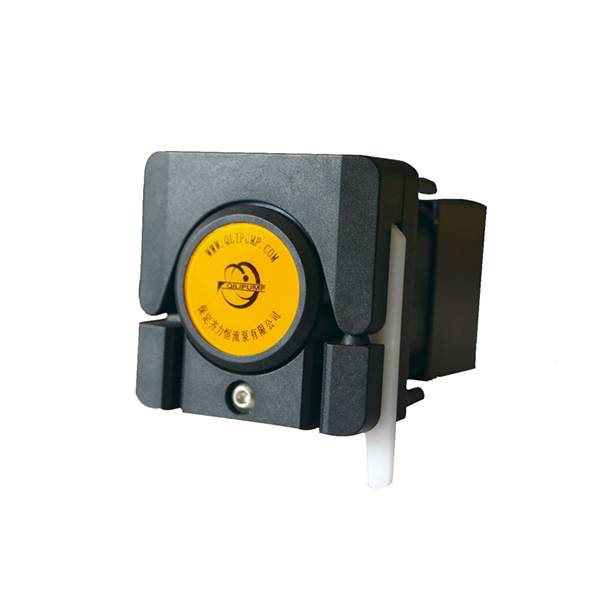

The OEM42 peristaltic pump is driven by a stepping motor, powered by a DC power supply, with high accuracy and stable operation. The switch value controls the start-stop and forward and reverse directions. Provide a maximum flow of 34mL. Beautiful appearance, small size, easy installation, suitable for OEM supporting use.
| range of rotation: | 2.2-80rpm, fixed speed, corresponding speed can be made according to user requirements. | Motor drive mode | Stepper motor drive |
| Start-stop control: |
Switch control: the contact is normally open, the peristaltic pump runs; the contact is closed, the peristaltic pump stops |
Speed error | Error≤±1rpm |
| Direction control: |
Switch control: the contact is normally open, the peristaltic pump runs clockwise; the contact is normally closed, the peristaltic pump runs counterclockwise |
Dimensions | 89.7*59.67.5（mm) |
| Applicable power supply: | DC12V-24V; or AC100V-240V (optional power adapter) 50/60Hz | Drive weight | 500g |
| Power consumption: | ≤12W | working environment: | Ambient temperature: 0-40℃, relative humidity: <80% |
| OEM-42 Peristaltic Pump Flow Parameters | ||||
| Drive model | Applicable pump head | Applicable hose | Maximum reference flow | Number of channels |
| （ml/min） | ||||
| OEM42 | wx10 |
Wall thickness: 0.8-1mm Inner diameter: ≤3.17mm |
0.015-34 | 1 |
