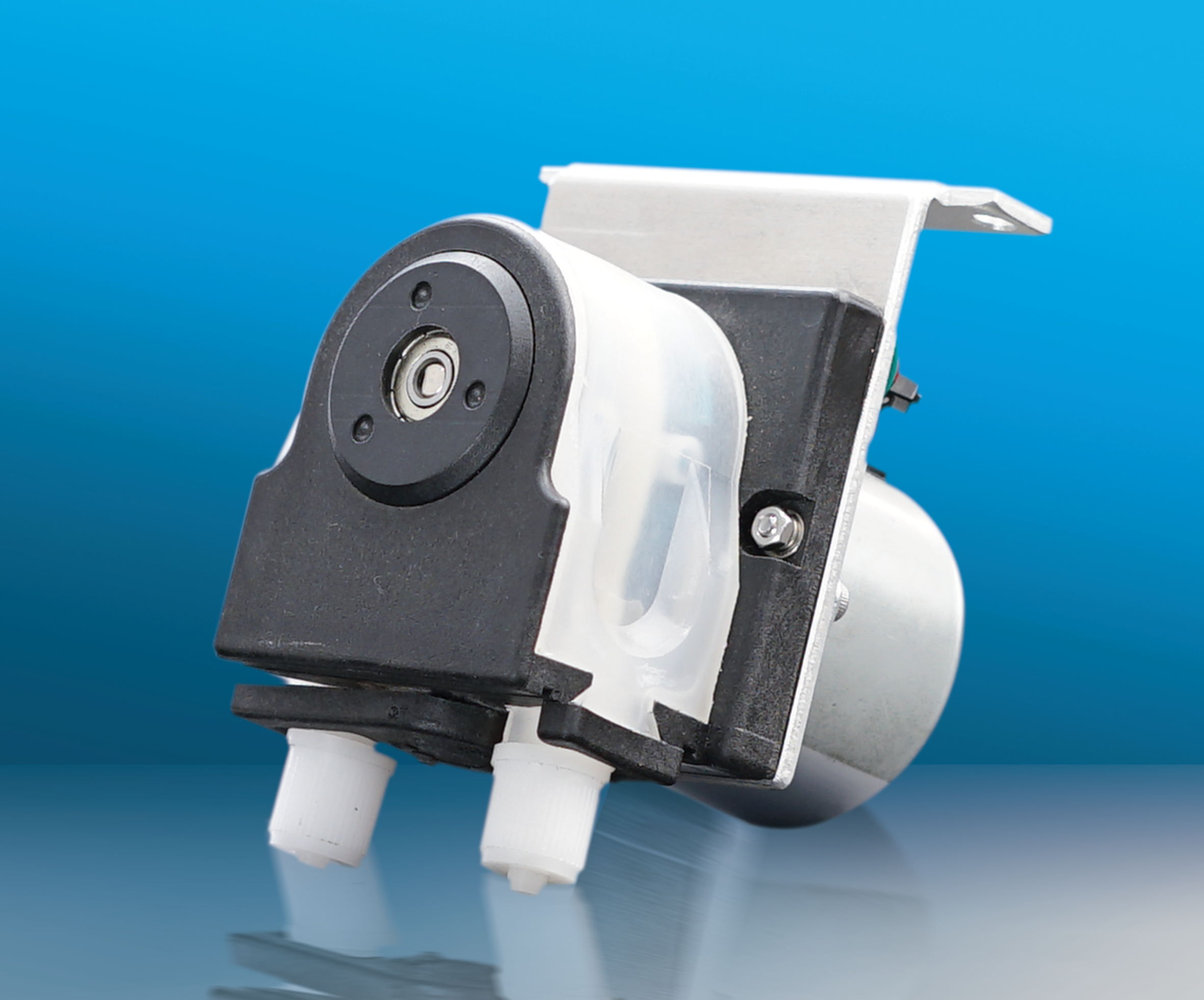

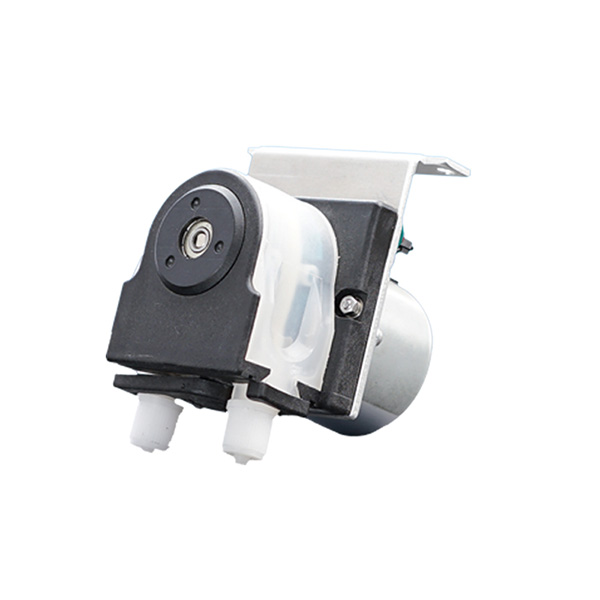

Online analysis and monitoring of peristaltic pump TMS

The pump head is equipped with a spring, which can greatly increase the life of the hose. Beautiful appearance, small size, simple and intuitive operation, suitable for OEM supporting use.

Flow range:Maximum flow rate: 10ml/min

Maximum number of channels:1 channel

Introduction

Parameter

Guide

video

The TMS peristaltic pump is driven by a fixed-speed AC decelerating motor, and the hose can be equipped with a pagoda-type pipe joint. The pump head is equipped with a spring, which can greatly increase the life of the hose. Beautiful appearance, small size, simple and intuitive operation, suitable for OEM supporting use.

range of rotation 5rpm/10rpm(customizable) flow 0.3/0.6/h
motor AC synchronous geared motor Applicable power supply AC 220V 50Hz
working environment Ambient temperature 0~40℃, relative humidity <80% Power consumption ≤6W
Dimensions 95*90*105(mm) Applicable hose 16# 25#
    weight 0.7kg
相关产品

*If you encounter any operation or quality problems of Qili constant flow pump, please contact us in time.

*Baoding Qili constant flow pump Co., Ltd. guarantees 7 * 24 hours online.

*Qili constant flow pump brand products have a one-year warranty and lifelong maintenance.

*The product picture, model, data, function, performance, motor model, specification and other parameters of this website are for reference only. Qili constant flow pump can improve the above content. For more information, please refer to the product manual. Unless otherwise specified, the data contained in this website are the internal test results of Qili constant flow pump.
