▲Stepper motor subdivided drive, DC power supply, high precision and stable operation.
▲The bottom plate installation method is divided into two control methods: internal control and external control.
▲The internal control adopts BCD dial switch, a total of 15 gears, and the speed is not continuously adjusted.
▲External control continuously adjusts the speed through 0-10KHz (or 0-10V, 0-5V, 4-20mA).
▲RS485 communication control possible (the company can provide Modbus protocol)
▲The switch value controls the start, stop and direction.
▲Beautiful appearance, small size, simple and intuitive operation, the power supply requires DC 11.4-25.2V range, suitable for OEM supporting use.

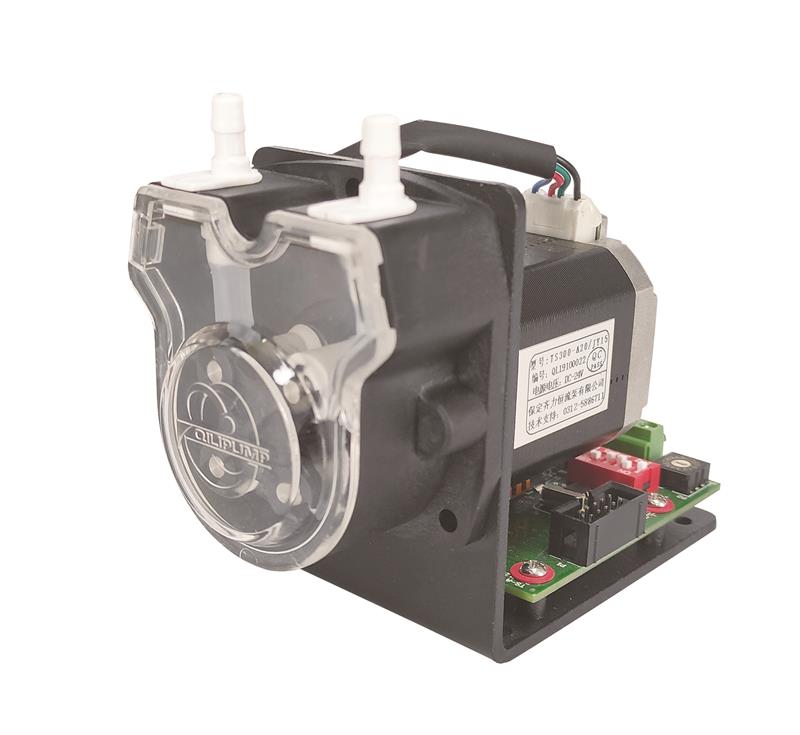

| Technical index of TS100-A/JY15 peristaltic pump: | |||
| Internal control speed range | The maximum speed is 100rpm, adjustable in stages | Speed resolution | 1rpm, full linear correspondence |
| External control speed range | 1～100rpm | Speed error | ≤±1rpm |
| Internal control speed control | BCD dial switch adjustment | External speed control | 0-10KHz pulse control (or 0-5V, 0-10V, 4-20mA) |
| Start-stop control | Switch control | Direction control | Switch quantity control, reversible forward and reverse directions |
| Applicable power supply | 11.4-25.2V DC; or 100-240V AC (optional power adapter) 50Hz/60Hz | Power consumption | ≤12W |
| working environment | Ambient temperature 0～40℃, relative humidity <80% | Dimensions | 115×60×92(mm) |
| (Length×Width×Height) | |||
| Drive weight | 550g | Use hose |
14#、19#、16#、25#、17# |
| TS100-A&JY15 peristaltic pump flow parameters | |||||
| Drive model | Number of pump head rollers | Number of channels | Applicable hose | range of rotation | Maximum reference flow |
| （ml/min） | |||||
| TS100-A&JY15-12 | 2 | 1 | 16# | 0.1-300 | 0.06-60 |
| 25# | 0.1-108 | ||||
| 17# | 0.16-164 | ||||
| TS100-A&JY15-14 | 4 | 1 | 16# | 0.1-300 | 0.01-40 |
| 25# | 0.063-63 | ||||
| 17# | 0.098-98 | ||||
| TS100-A&JY15-12 | 2 | 1 | 16# | 0.1-300 | 0.06-180 |
| 25# | 0.1-324 | ||||
| 17# | 0.16-492 | ||||
| TS100-A&JY15-14 | 4 | 1 | 16# | 0.1-300 | 0.04-120 |
| 25# | 0.63--189 | ||||
| 17# | 0.098-294 | ||||
