typical application
Electrospinning applications and other laboratory microinjection experiments. .
main feature
4.3-inch industrial-grade true color LCD display, intuitive interface, simple touch screen operation.
The injection pump can be controlled through the external control interface.
With correction function, high accuracy can be ensured through correction.
RS485 communication uses Modbus protocol, which is easy to debug and use.
Traffic jam protection function: During the working process, the propulsion mechanism of the syringe pump is blocked, and this equipment will stop the operation of the propulsion mechanism.
304 stainless steel metal casing.
Electrospinning applications and other laboratory microinjection experiments. .
main feature
4.3-inch industrial-grade true color LCD display, intuitive interface, simple touch screen operation.
The injection pump can be controlled through the external control interface.
With correction function, high accuracy can be ensured through correction.
RS485 communication uses Modbus protocol, which is easy to debug and use.
Traffic jam protection function: During the working process, the propulsion mechanism of the syringe pump is blocked, and this equipment will stop the operation of the propulsion mechanism.
304 stainless steel metal casing.

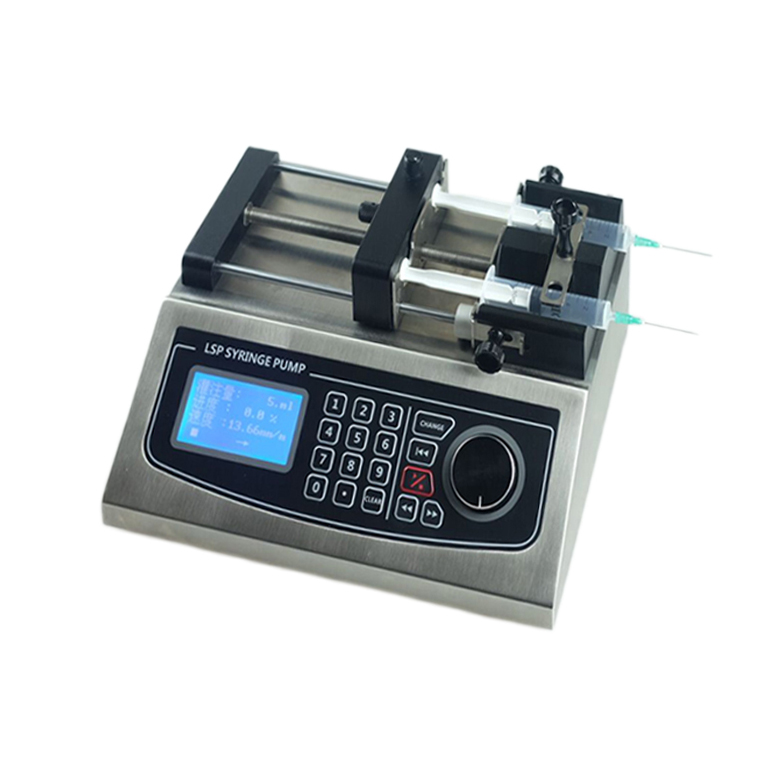

| model | LSP02-1B | |||
| Syringe type | 10 ul to 140 ml | |||
| Insurance | 5 x 20 mm, 250 V~, Fast, 1A | |||
| Drive device | Microprocessor controlled 16 subdivided stepper motors, driving the lead screw connected with the timing belt | |||
| Advance distance per micro step (1/16 step) | 0.156 micron | |||
| Injection volume per microstep (1/16 step) | 0.0919µl （60ml BD syringe） | |||
| Maximum pace | 867 steps/sec | |||
| Minimum pace | 1step/30 secs | |||
| Linear speed range | Min: 5um/min Max: 13 cm/min | |||
| Flow range | 0.831 nl/min to 150.5 ml/min (60 ml syringe) | |||
| Linear thrust | 40 lb (18kg) | |||
| Dimensions | 280x210x140 （mm） | |||
| weight | 3.9kg | |||
| temperature | 5°C - 40°C (41°F - 104°F) | |||
| humidity | 20% - 80% RH | |||
| Operating mode | perfusion | |||
| Syringe pump model | Applicable syringe | Applicable syringe | Reference flow range (single channel) |
| (Or sampler) specifications | Inner diameter (mm) | (μl/min-ml/min) | |
| LSP02-1B | 10μl | 0.5 | 0.001-0.0255 |
| 25μl | 0.8 | 0.0025-0.0653 | |
| 50μl | 1.1 | 0.0048-0.1235 | |
| 100μl | 1.6 | 0.0101-0.2614 | |
| 250μl | 2.3 | 0.0208-0.5401 | |
| 500μl | 3.25 | 0.0415-1.0784 | |
| 1ml | 4.72 | 0.0875-2.2747 | |
| 2ml | 9 | 0.3181-8.2702 | |
| 5ml | 13.1 | 0.6739-17.522 | |
| 10ml | 16.6 | 1.0821-28.135 | |
| 20ml | 19 | 1.4176-36.859 | |
| 30ml | 23 | 2.0774-54.012 | |
| 60ml | 29.14 | 3.3346-86.699 |
