typical application
Mainly used in laboratories, the most commonly used basic type, suitable for conventional fluid transmission, pharmaceutical industry, fine chemicals, water treatment,
Environmental protection engineering, food and beverage addition, and acid and alkali supplementation and defoaming in industrial fermentation systems. And many other general fields.
main feature
The stepping motor is subdivided and driven, with high precision and stable operation.
The 3-digit LED digital tube displays the current speed, which is simple, intuitive and clear at a glance.
The membrane button adjusts the speed, direction, start/stop, and the operation is simple and convenient; there is also a full-speed button for quick filling or emptying.
With power-down memory function, power-on again after power-off, work according to the state before power-off.
It can communicate with PC through RS485.
It can be used with accessories such as sub-assembly controller, foot switch, external control module, etc. to realize small batch filling and distribution

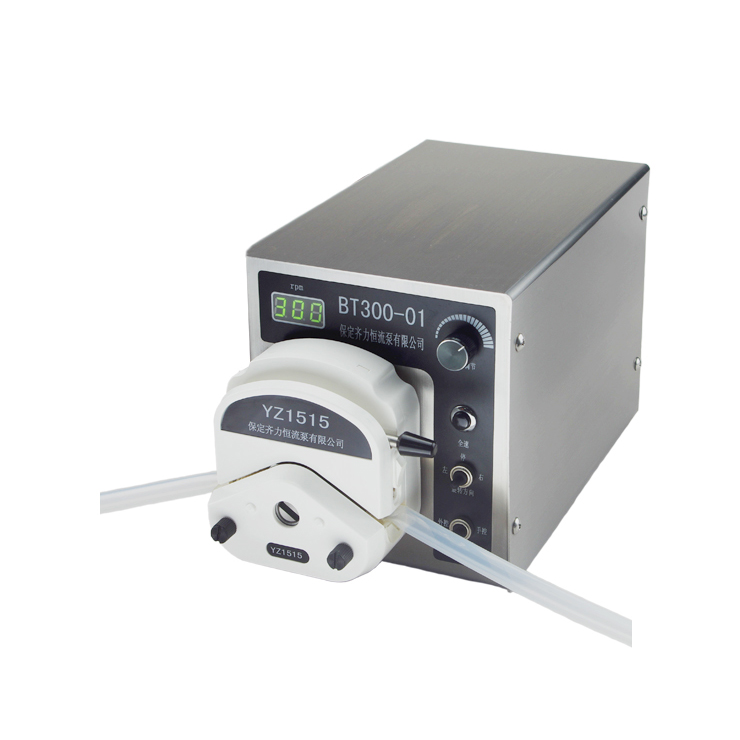

BT300-01 technical indicators: | |||
Speed adjustment range | 1-300rpm | Power consumption | <60W |
Speed display resolution | 1rpm | working environment | Temperature 0-40℃, humidity <80%, no condensation |
Display method | Three-digit digital tube display | Overall dimensions (length×width×height) | 237×148×170(mm)(Without pump head) |
Analog control | 0-5V,0-10V,4-20mA,0-10kHz | ||
Communication control | RS485 | Drive weight | 3.8kg |
Applicable power supply | Wide voltage AC100-240V, 50Hz/60Hz | Protection level |
IP31 |
Peristaltic pump BT300-01 flow parameters | ||||
Drive model | Pump head | Applicable hose | Reference flow range (ml/min) | Number of channels |
BT300-01 | YZ1515 | 13#14#19#16#25#17#18# | 0.07-1140 | 1 |
YZ2515 | 15#24# | 1.7-840 | 1 |
