typical application:
Suitable for conventional fluid transportation, pharmaceutical industry, refinement, suitable for conventional fluid transportation, pharmaceutical industry, fine chemicals, water treatment, environmental protection engineering, food and beverage production dosage additives,
In the process fermentation system, there are many general fields such as supplementing acid and alkali, defoaming, scientific experiment and so on.
main feature:
Industrial plastic enclosure
Large screen LCD display
Digital knob + mask button adjustment
Two modes of distribution and flow
Wide voltage power input
One-key quick filling and sucking back
Power-down memory
Suitable for conventional fluid transportation, pharmaceutical industry, refinement, suitable for conventional fluid transportation, pharmaceutical industry, fine chemicals, water treatment, environmental protection engineering, food and beverage production dosage additives,
In the process fermentation system, there are many general fields such as supplementing acid and alkali, defoaming, scientific experiment and so on.
main feature:
Industrial plastic enclosure
Large screen LCD display
Digital knob + mask button adjustment
Two modes of distribution and flow
Wide voltage power input
One-key quick filling and sucking back
Power-down memory

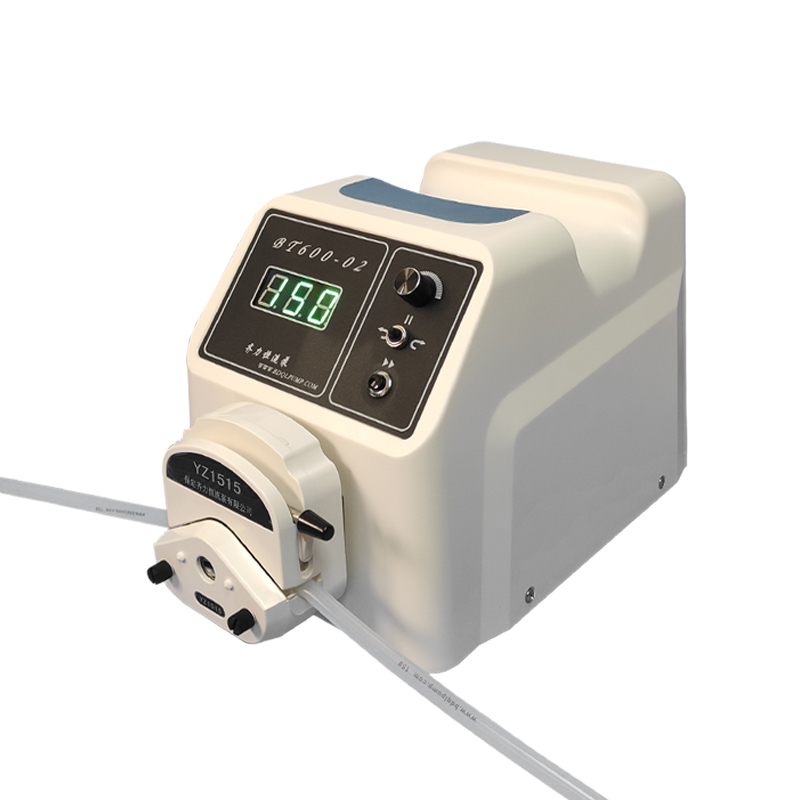

| Technical index of peristaltic pump BT600-02: | |||
| range of rotation | 1～600rpm forward and reverse reversible | Speed resolution | 1rpm |
| Adjustment method | Rotary encoder | Display method | 3-digit LED digital tube display |
| External control function | Start-stop control, direction control, speed control | Communication function | RS485 (0～5V, 0～10V, 4～20mA, 0～10KHz control input) |
| Applicable power supply | 220VAC±10﹪ 50HZ/60HZ | Power consumption | ≤48W |
| working environment | Temperature 0～40℃, relative humidity＜80% | Dimensions (L×W×H) | 237mm×148mm×170mm |
| Drive weight | 4.8KG(Excluding pump head) | IP rating | IP31 |
| Peristaltic pump BT600-02 parameter flow | ||||
| Drive model | Pump head | Applicable hose | Reference flow range (ml/min) | Number of channels |
| BT600-02 | YZ1515 | 13#14#16#17#18#25# | 0.07-2280 | 1 |
| YZ2515 | 15#24# | 1.7-1600 | 1 | |
| YZ1515×2 | 13#14#16#17#18#25# | Single channel 0.07-2280 | 2 | |
| YZ2515×2 | 15#24# | Single channel 1.7-1600 |
2 |
|
