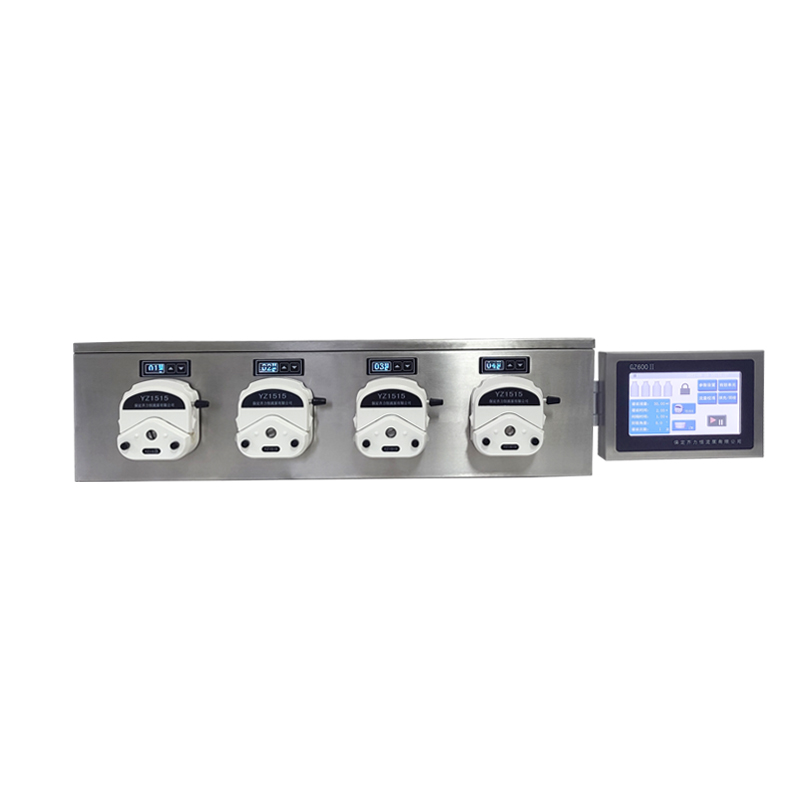

High subdivision and precise angle control technology to realize high-precision filling.
Color touch screen control, friendly interface, animation display filling status, and filling parameters and system settings are displayed on the same screen.
The intelligent calibration function automatically calibrates the filling volume before production to ensure filling accuracy.

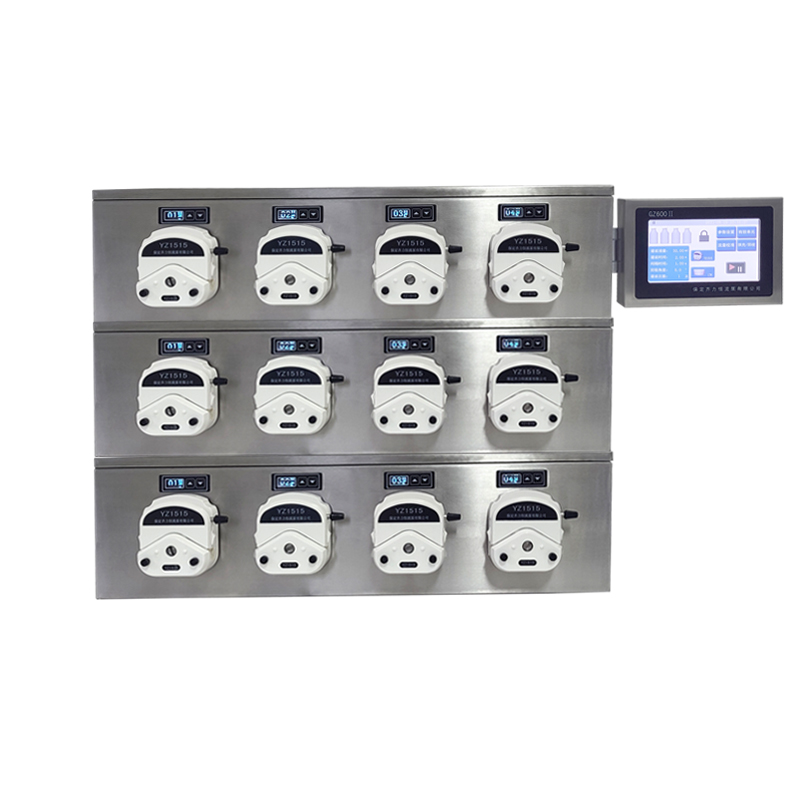

Up to 32 filling channels can be arbitrarily expanded on one controller, saving costs to the greatest extent.
The effective unit is set, and one or several filling channels can be opened or closed arbitrarily during use.
The suction angle is set to avoid liquid leakage during shutdown.
External control start and stop function, the two modes can be switched for use.
Each channel independently receives the lack of bottle stop irrigation signal to realize the single channel lack of bottle stop irrigation.
Quickly fill or recycle, you can clean the pipeline and fill the pipeline with liquid.
304 stainless steel shell, anti-corrosion, no rust.
Adapted pump head | Reference filling volume (ml) | Applicable hose | Reference filling time (s) | Filling accuracy error | Filling needle inner diameter | Reference output |
(mm) | ||||||
YZ1515 | 0.3-0.5 | 13# | 1-1.2 | ≤±2% | ≤0.5 | 27-30 |
1.0-2.3 | 14# | ≤1.0 | ||||
2.6-5.1 | 19# | ≤1.5 | ||||
4.6-9.1 | 16# | ≤2.0 | ||||
10~19 | 25# | ≤3.0 | ||||
15-30 | 17# | ≤3.0 | ||||
YZ2515 | 8.0-17 | 15# | ≤3.0 | |||
12~24 | 24# | ≤3.0 | ||||
DMD15 | 0.1-0.9 | 13#*2 | ≤3.0 | |||
0.2-2.3 | 14#*2 | ≤3.0 | ||||
0.5-5.9 | 19#*2 | ≤3.0 | ||||
0.2-10 | 16#*2 | ≤3.0 | ||||
5.0-25 | 25#*2 | ≤3.0 |
