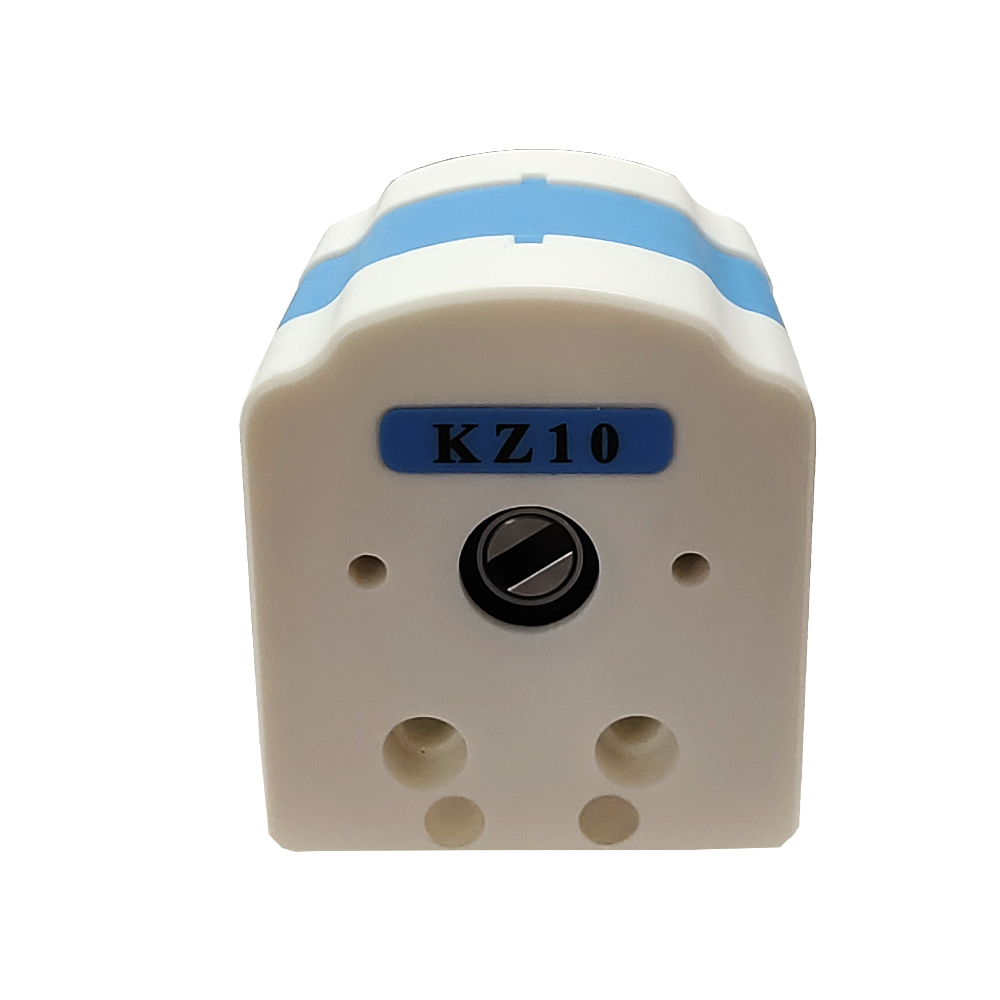

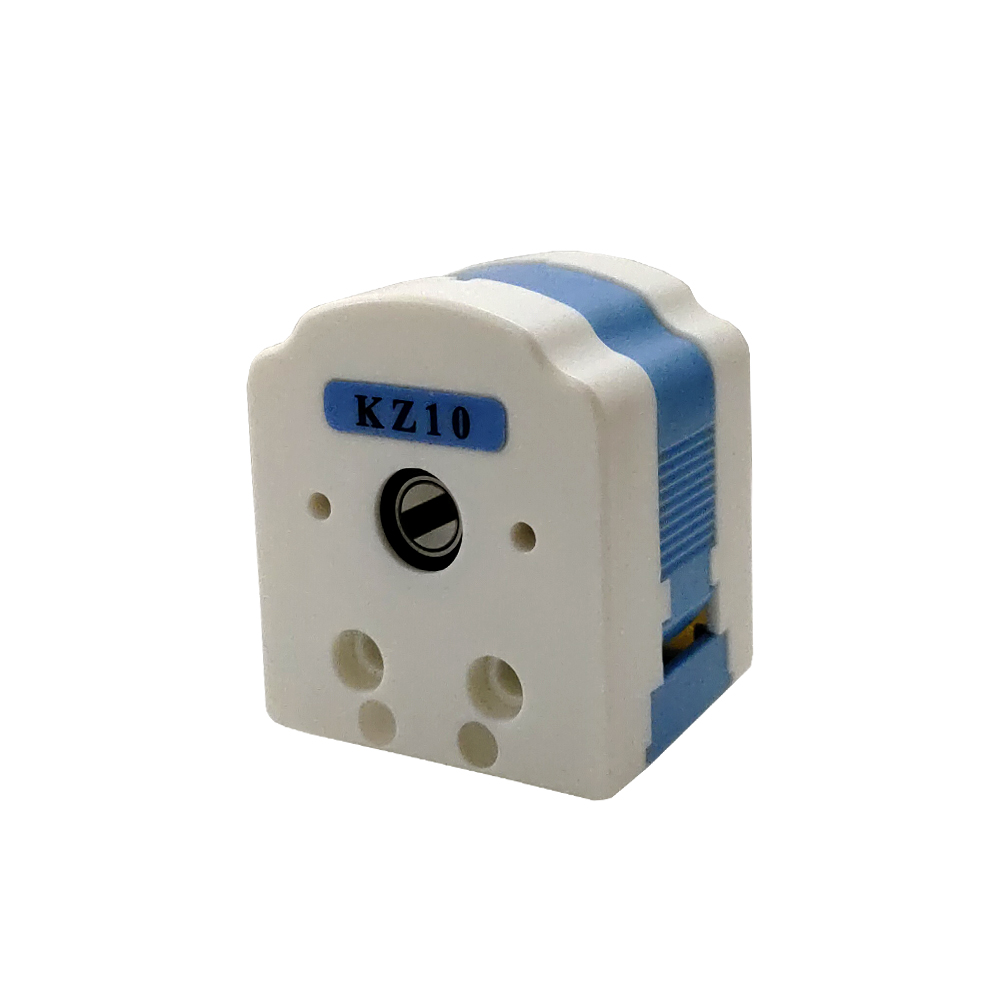

KZ10/KZ15 series pump head has compact structure and small volume.
It is suitable for supporting use of OEM products and can be cascaded with multiple pump heads to save equipment space.

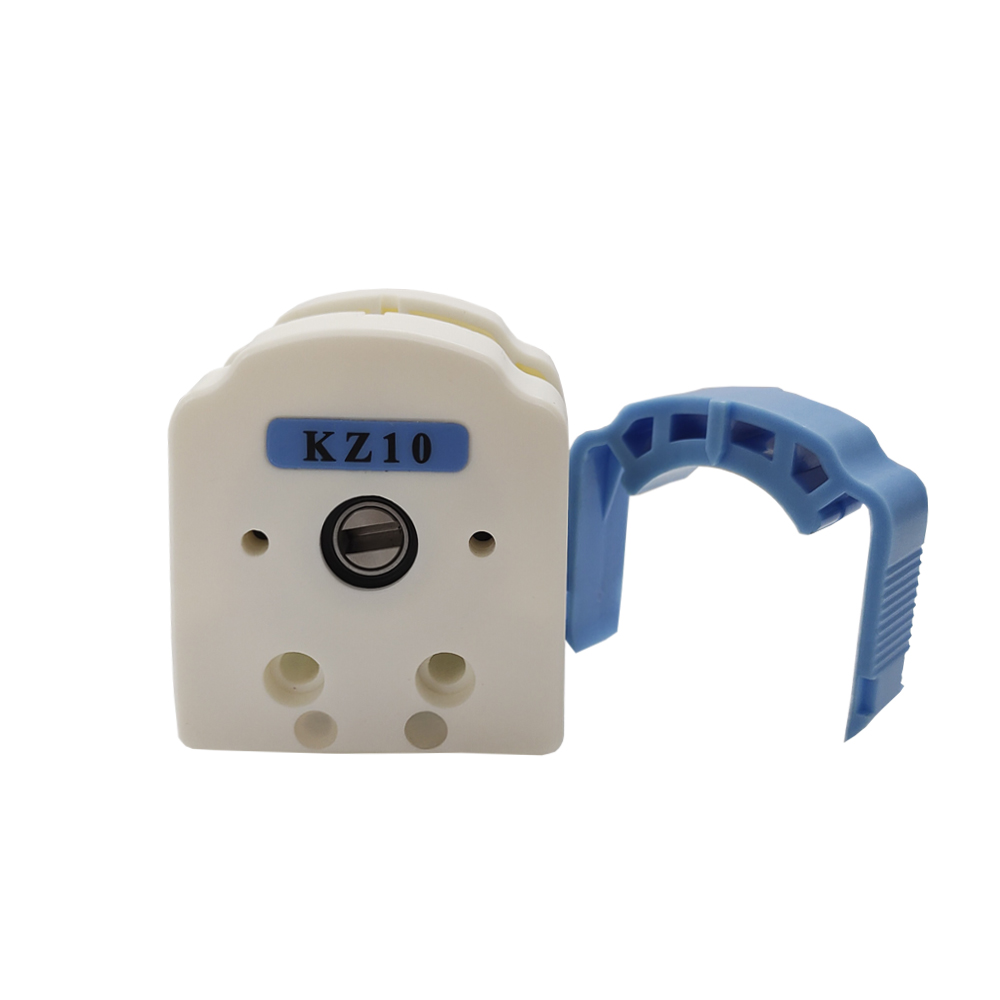

The quick-fit structure is convenient and quick to replace the hose.
It is suitable for supporting use of OEM products and can be cascaded with multiple pump heads to save equipment space.
The quick-fit structure is convenient and quick to replace the hose.
| Product model | Spindle type | Number of channels | Number of rollers | Speed range（rpm） | Applicable hose specification | Maximum reference flow of single channel（ml/min） | weight（g） |
| KZ10-14C | the major axis | 1 | 4 | ≤450 | bore size≤3.17mm | 150 | 90 |
| KZ10-24C | 2 | wall thickness0.86-1mm | |||||
| KZ10-14D | minor axis | 1 | |||||
| KZ10-24D | 2 | ||||||
| KZ15-14C | the major axis | 1 | 13#、14#、19#、16# | 184 | |||
| KZ15-14D | minor axis |
