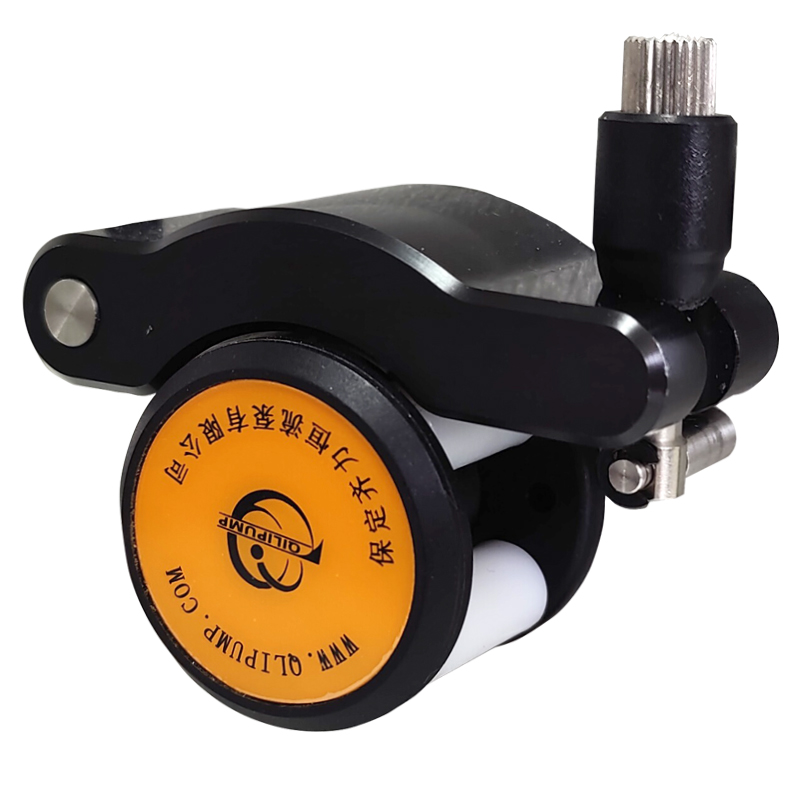

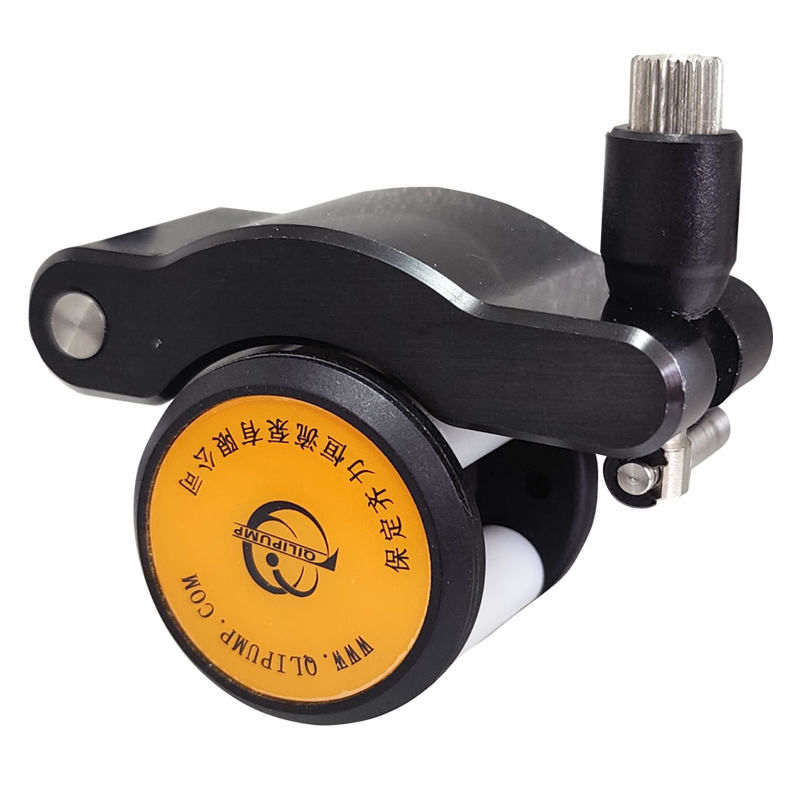

Mini-flow peristaltic pump head JY10

It is suitable for ink transmission, COD water treatment, environmental protection sampling, medical equipment matching and other fields. It has the characteristics of high precision and micro transmission.

Flow range:0.004-44ml/min

Maximum number of channels:

Introduction

Parameter

Guide

video

It is suitable for ink transmission, COD water treatment, environmental protection sampling, medical equipment matching and other fields.
It has the characteristics of high precision and micro transmission.
Drive model Number of pump head rollers Number of channels Applicable hose Speed range Maximum reference flow
(ml/min)
JY10-14 4 1 1×1 0.1-100 0.004-4
2×1 0.025-25
2.4×0.8 0.029-29
3×1 0.044-44
JY10-18 8 1 1×1 0.1-100 0.0036-3.6
2×1 0.018-18
2.4×0.8 0.02-20
3×1 0.026-26
JY10-24 4 2 1×1 0.1-100 0.004-4
2×1 0.025-25
2.4×0.8 0.029-29
3×1 0.044-44
JY10-28 8 2 1×1 0.1-100 0.0036-3.6
2×1 0.018-18
2.4×0.8 0.02-20
3×1 0.026-26
相关产品

*If you encounter any operation or quality problems of Qili constant flow pump, please contact us in time.

*Baoding Qili constant flow pump Co., Ltd. guarantees 7 * 24 hours online.

*Qili constant flow pump brand products have a one-year warranty and lifelong maintenance.

*The product picture, model, data, function, performance, motor model, specification and other parameters of this website are for reference only. Qili constant flow pump can improve the above content. For more information, please refer to the product manual. Unless otherwise specified, the data contained in this website are the internal test results of Qili constant flow pump.
